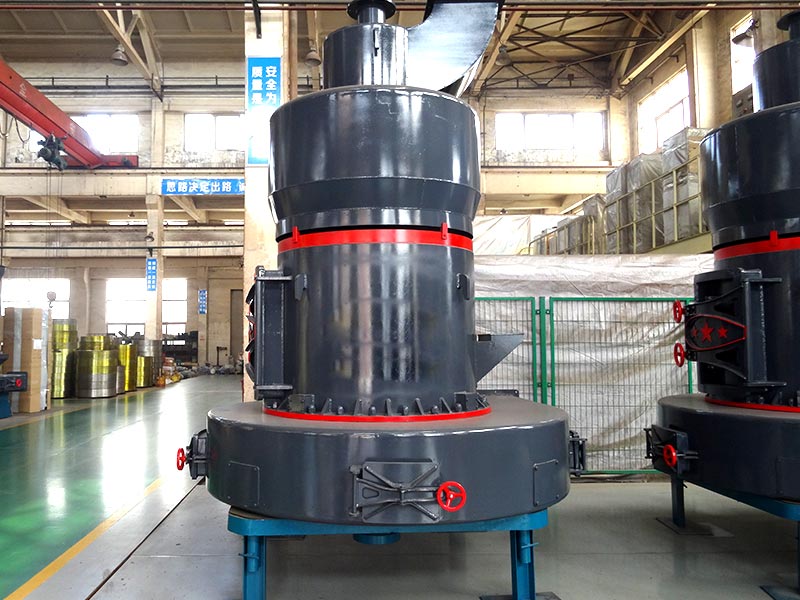

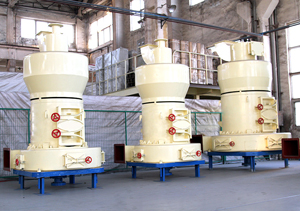

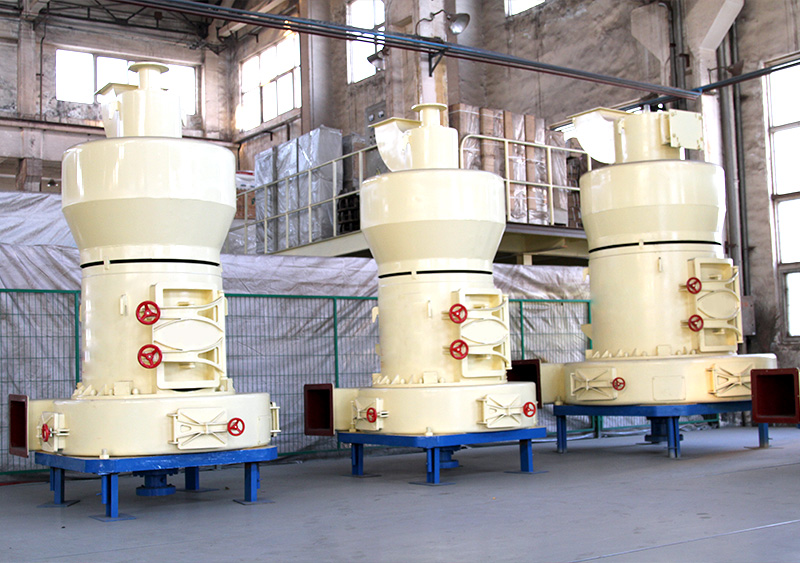

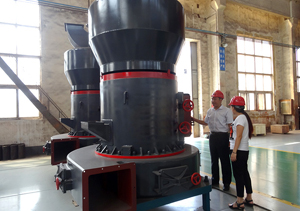

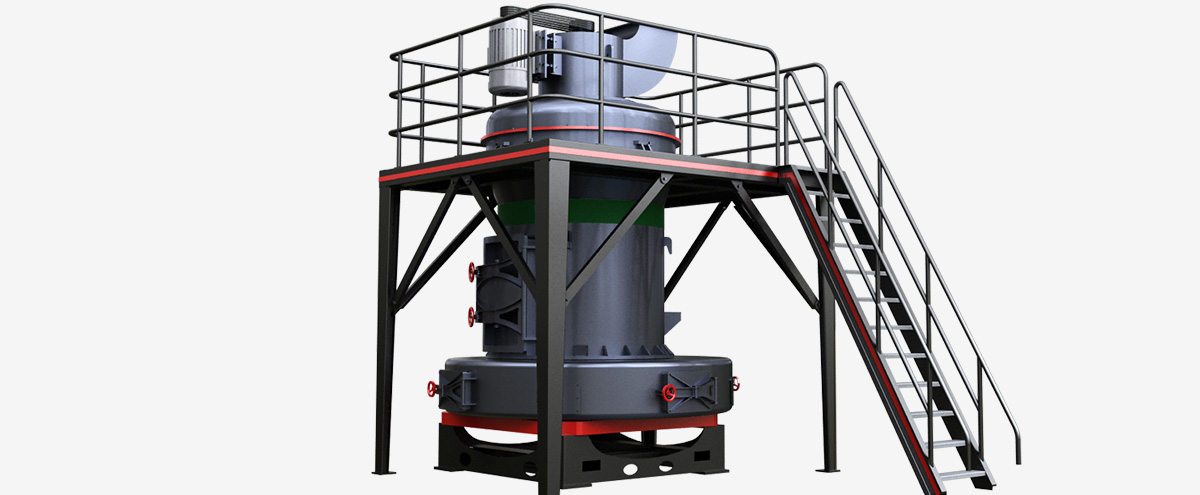

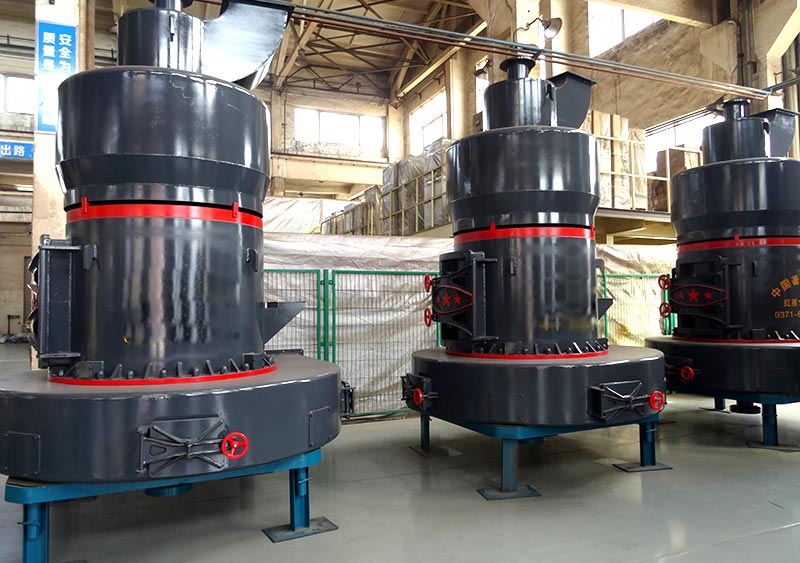

HGM Superfine Powder Grinding Mill

The FTM HGM superfine powder grinding mill was developed with long-term friendly exchanges with the customer and production based on field investigation, in view of the flour milling industry development needs, the use of, with international advanced level of new grinding equipment. Finished product fineness can be in 0.18 mm (80 mesh) - 0.010 mm (1250 mesh) between arbitrary adjustment. It enjoys the advantages of small investment, high yield, low energy consumption, strong grinding pressure, feed particle size big, small discharging granularity and good sealing.

Features and Strengths

Efficient, energy-saving; The high-pressure spring compression device makes the roller pressure increase, mill yield and suitable material in a wider range.

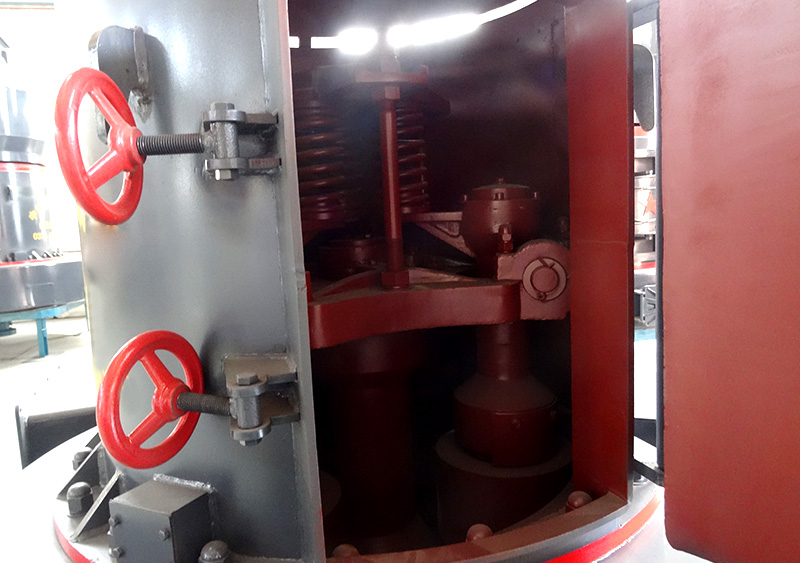

The long life of wearing parts; The roller device is using the most advanced mechanical air resistance sealed plus multi-level sealed multi-level seal with the advantages of sealing performance, reduce maintenance costs and extend the equipment life.

High safety and reliability; In the mill chamber without rolling bearings, without screws, so there is no bearings and seals the vulnerability problem and it does not exist screw loose which causes damage to the equipment.

The effect of fine material sorting, forming once time; Improved turbine blade analysis machine, with high density, flow resistance, powder fineness and yield increase, analysis of variable frequency speed regulation machine, more accurate, more energy, better fine material separation effect.

Environmental protection, clean; With soft connection, rubber pads and other measures can avoid the influence of shock, vibration of the grinding cavity analysis machine and improve the accuracy of analysis effectively. At the same time, reduce noise, improve the working environment.

Customer Case:

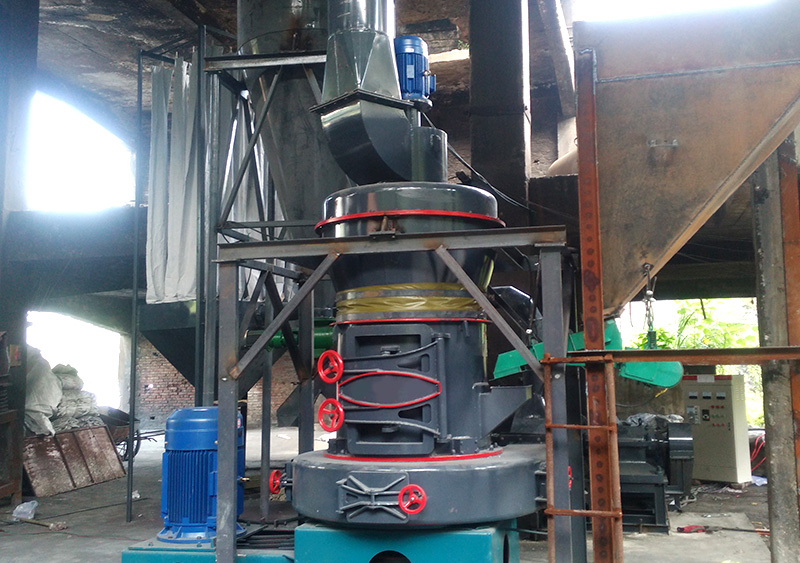

Belgian calcite grinding production line

This production line is mainly composed of PE400*600 jaw crusher, electric-magnetic vibrating feeder, HGM superfine grinding mill, bucket elevator, electric control cabinet, packing machine, pulse dust remover, etc. Required calcite powder fineness: 400meshs, production capacity: 15-20 tons  The whole production line has high mechanization degree, high efficiency, environmental protection and other features.

Customer Feedback

In detail design of the production line, FTM engineers inspected our project personally and designed a compact and reasonable layout according to space of the site. The main milling machine shows excellent production capacity, uniform product quality, continuous production capacity, almost no failure occurs. The smooth operation of the supporting equipment has also improved production efficiency, and few workers can complete the whole process of production, and all the design, installation and debugging are free, we are very satisfied.
