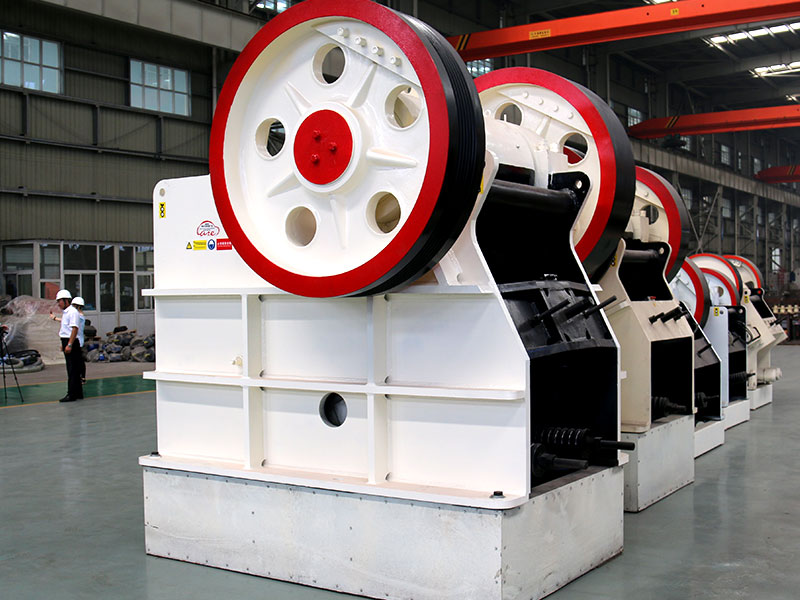

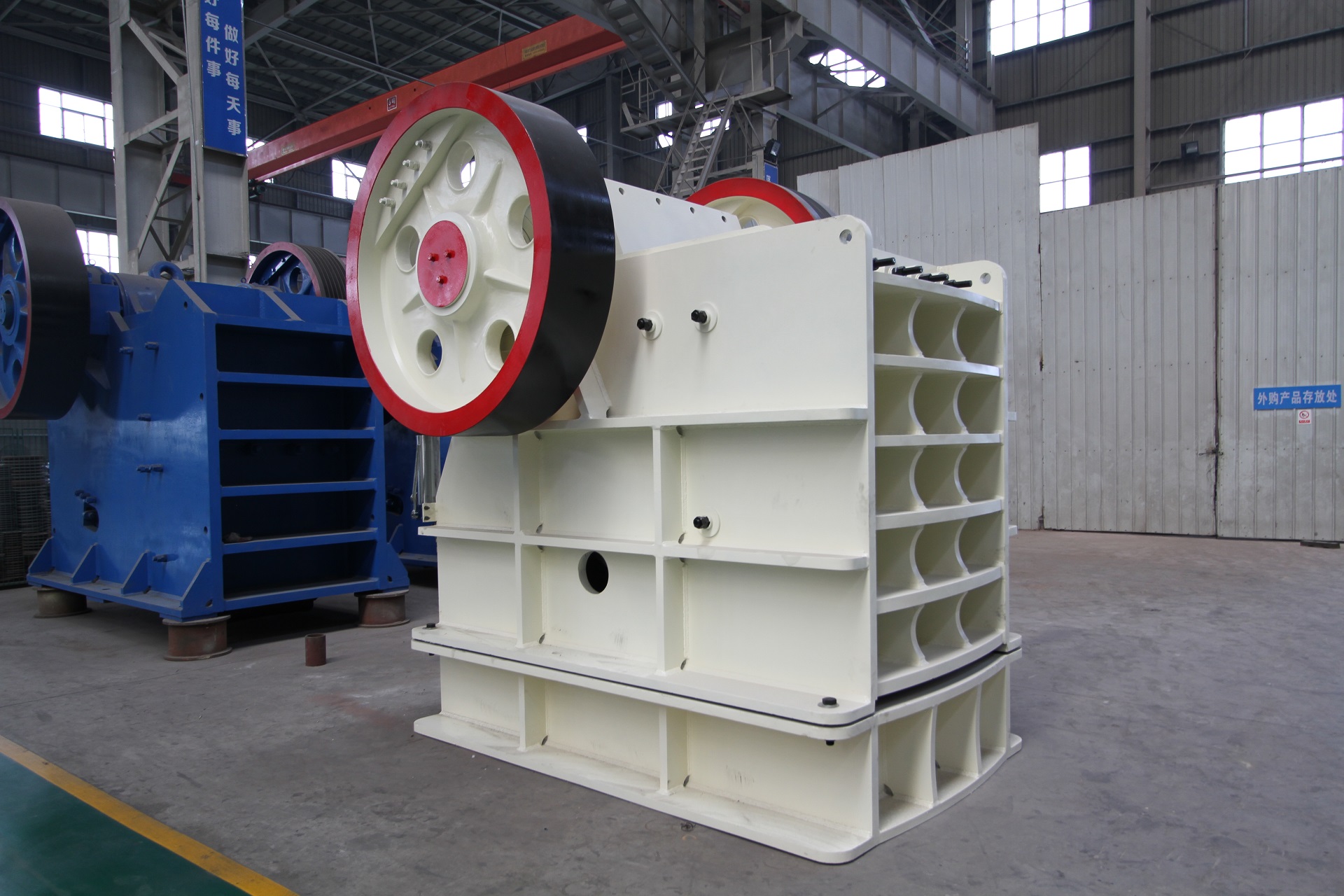

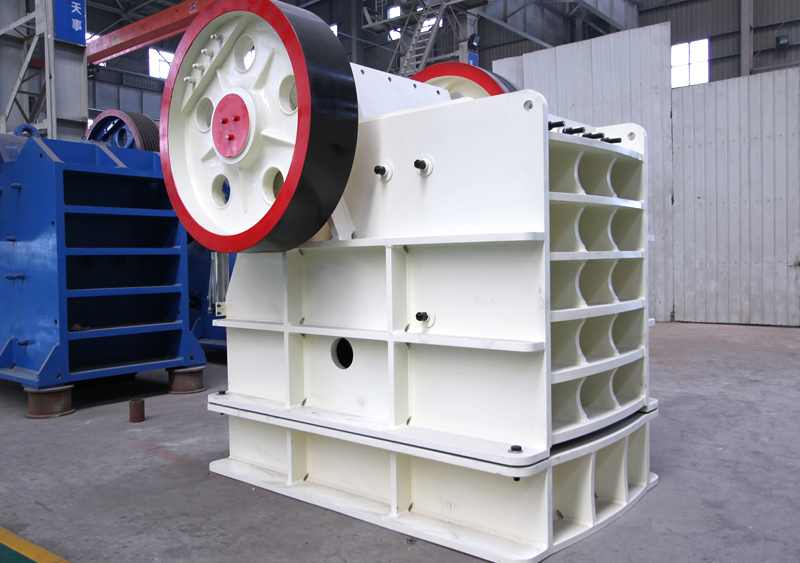

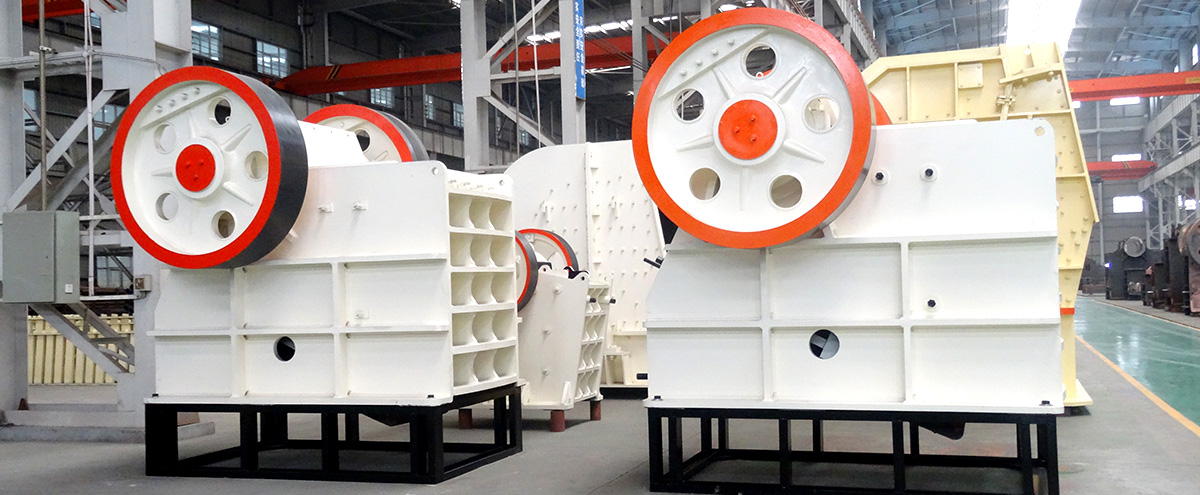

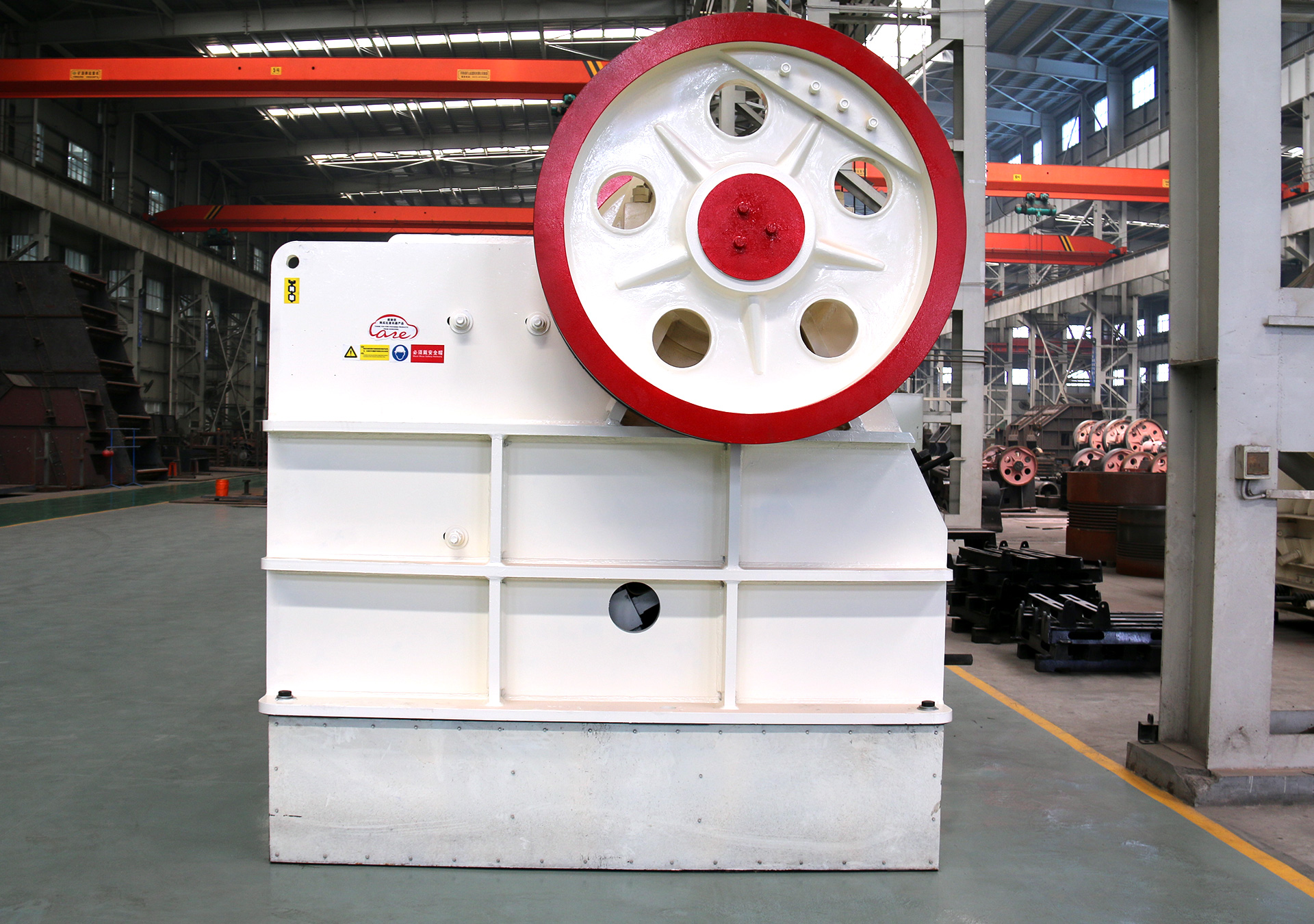

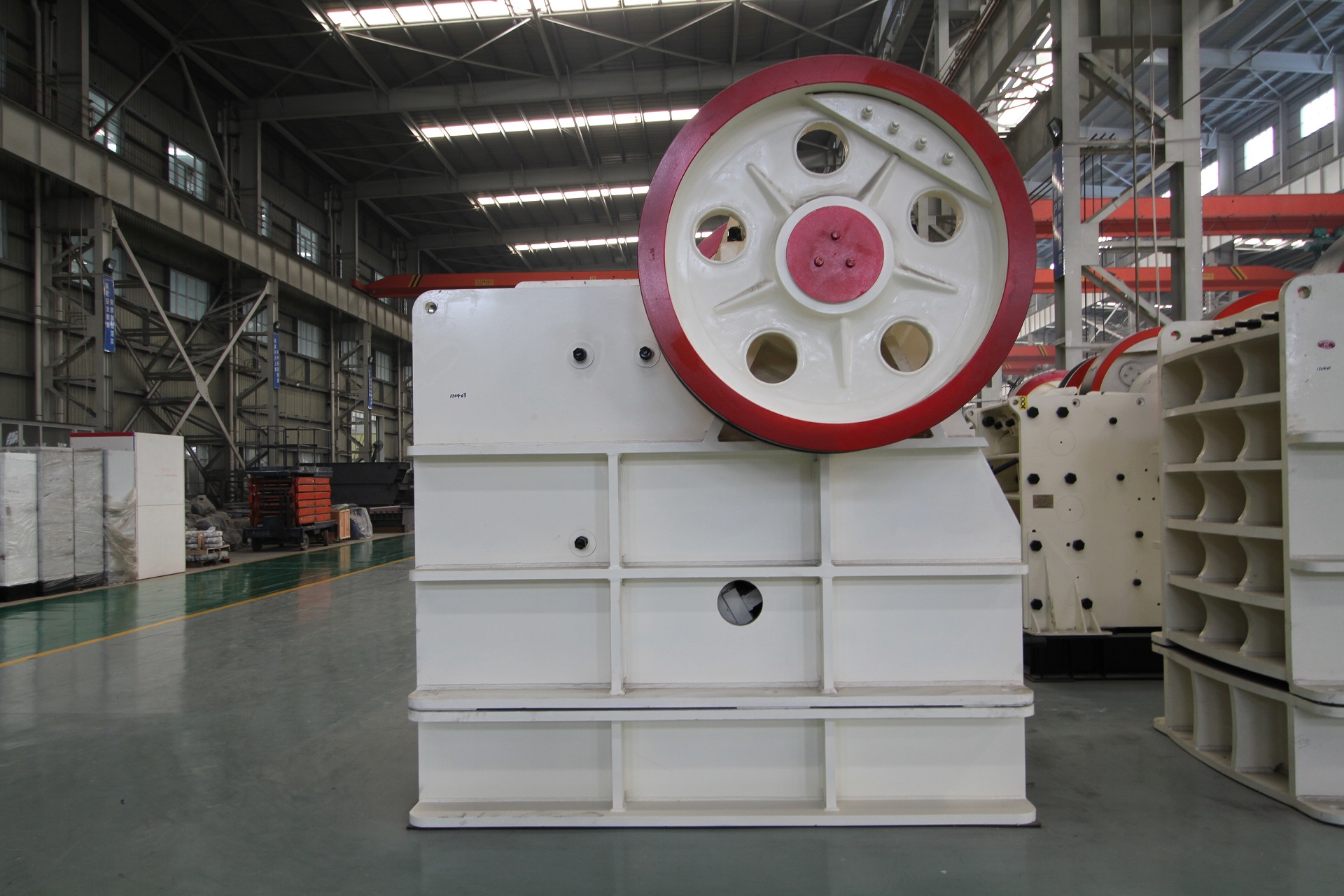

HD Jaw Crusher

HD Jaw Crusher

With the rapid development of mining and construction industry, people have higher requirements on jaw crusher's production capacity and crushing stability. Based on market demand,FTM with many years of accumulated experience in the crushing industry project cooperate with the German crusher experts jointly developed a series of high performance FTM HD jaw crusher. Its use not only increases the production capacity and product quality, but also expands the product application scope. HD jaw crusher can be widely used in metals and non-metallic minerals, construction, cement, metallurgy and other industries, and has excellent performance in handling hard materials.

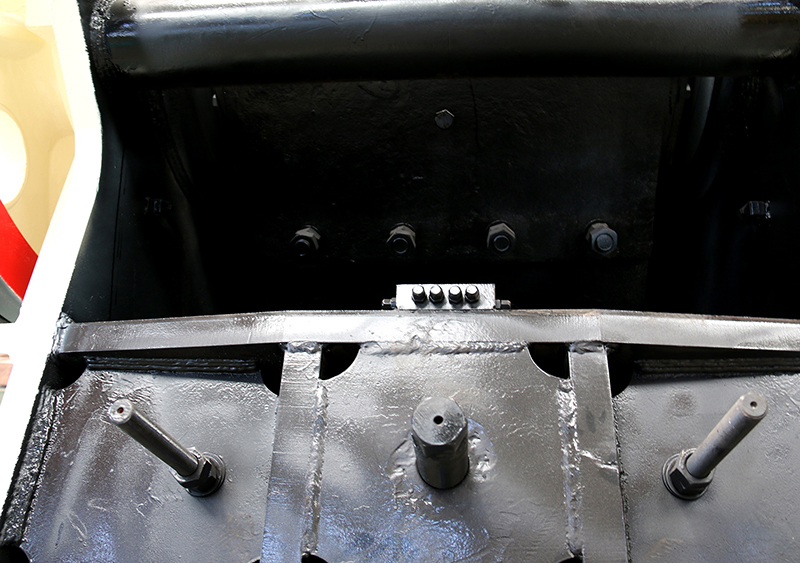

The main parts of the HD type jaw crusher: eccentric shaft, flywheel, frame, jaw plate, bearing seat and other parts, and equipped with corresponding adjusting device and lubricating system.


  • Better carrying capacity and stable wear-resisting feature; HD series jaw crusher uses two super bearings to support the movable jaw, making the equipment with better carrying capacity and stable wear-resisting feature.

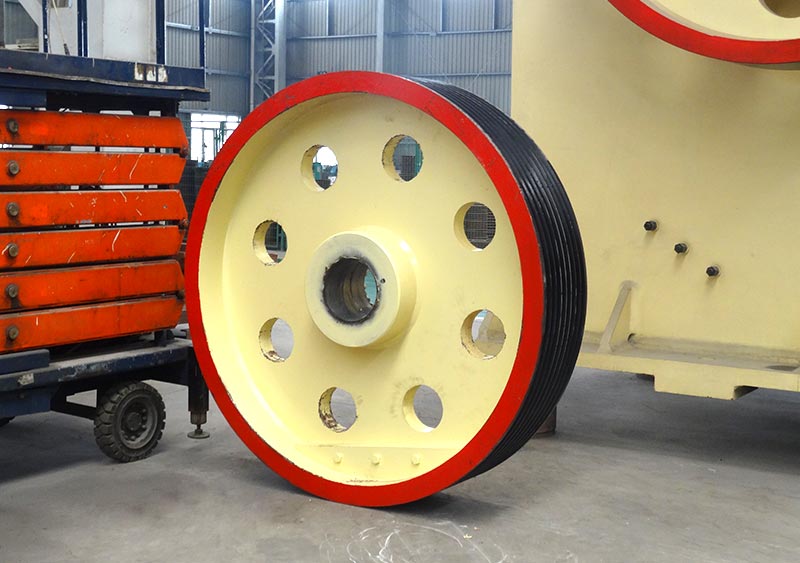

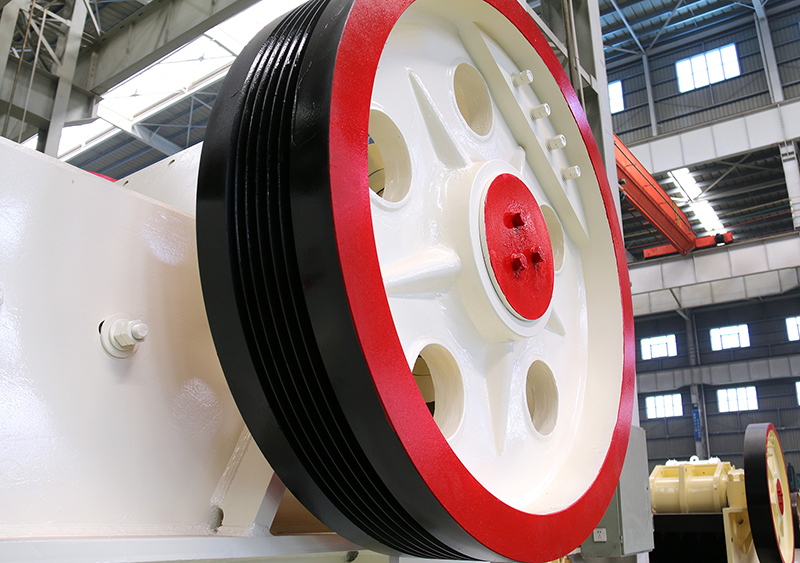

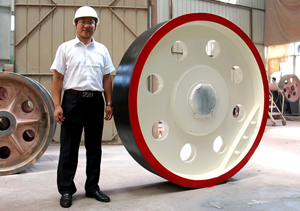

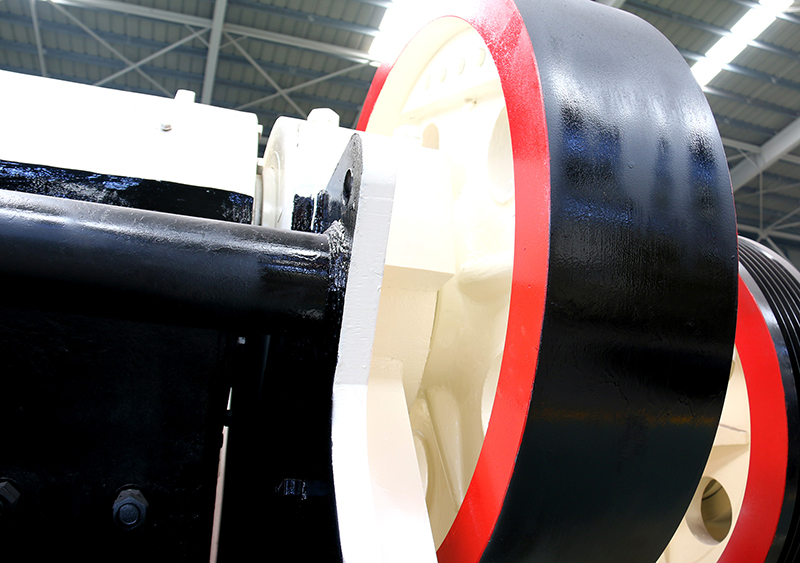

  • More stable and reliable; Our research staffs optimize the overall structure and balance part weight, using accurate calculation and analysis to determine the structure of the flywheel & sheave and the weight of counterweight, effectively reducing the vibration level of the equipment, making the equipment running more stable and reliable.

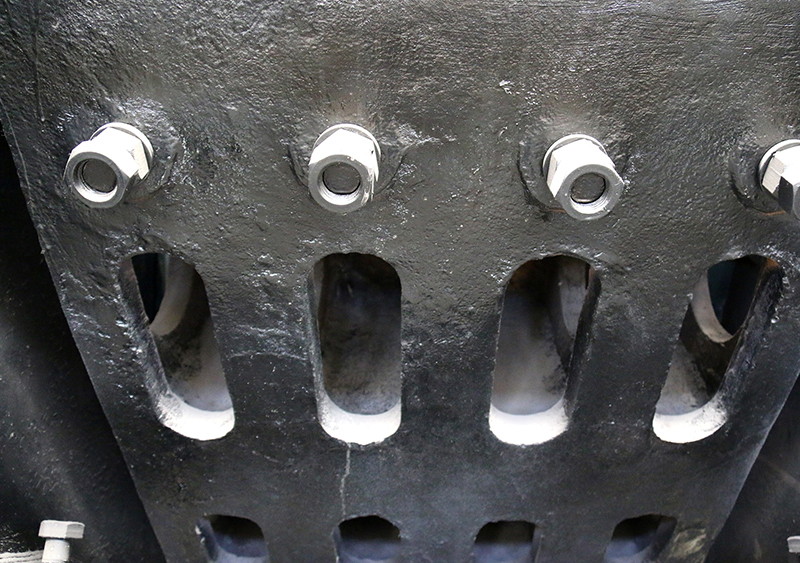

  • Specially developed jaw plate; The tooth form of the jaw plate is optimized by mechanics structure and the segmented curve jaw plate is adopted.
  • High crushing efficiency and low cost; The manganese steel alloy jaw plates have increased thickness, strong and durable, and the upper and lower symmetry can be used for the second time, which effectively improves the crushing efficiency and saves the cost of HD Jaw Crusher.
  • Low breakdown time; The toggle plate and the movable jaw have lateral anti bias function, so as to ensure the smooth operation of the machine and reduce the breakdown.

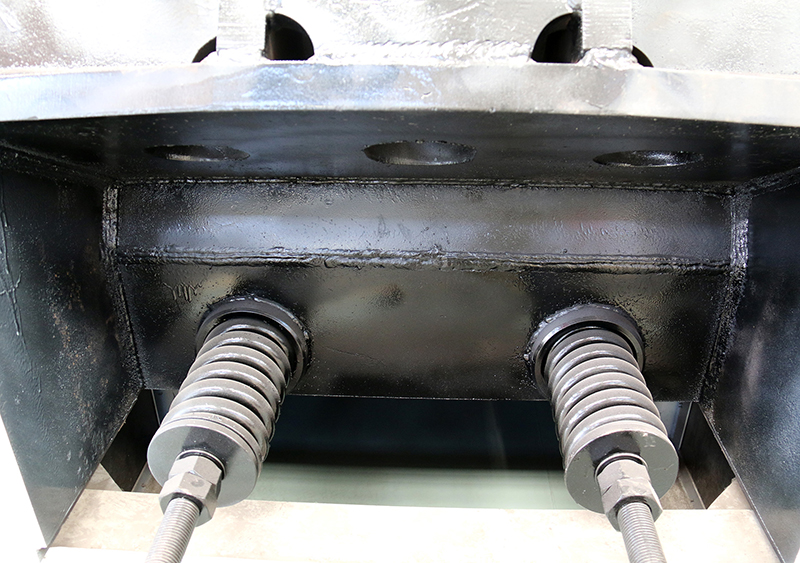

  • Portable adjustment; The discharge port can be adjusted conveniently and HD jaw crusher machine is equipped with overload protection device. High strength steel liner is bent without breaking when overloaded and can protect machine; And the wedge type discharge port is equipped with hydraulic device, and the adjustment is portable.
  • Low duct; The HD type jaw crusher is equipped with a centralized lubrication system and uses a general lubrication connection head. Labyrinth seals can effectively prevent dust.
  • Integrated design; Motor and main engine with integrated design strengthen the rotation speed.

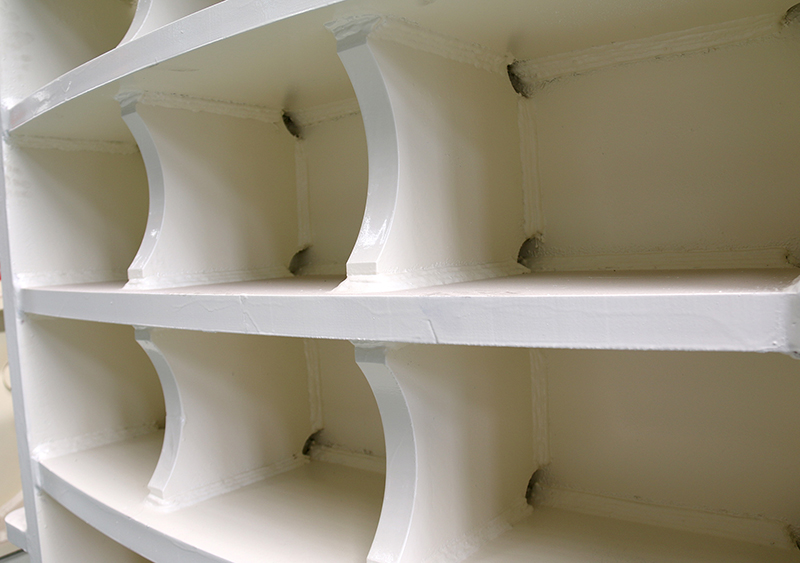

  • Rugged base; The base is built by the overall steel frame, smooth and stable.
