Powder Grinding Production Line

Powder Grinding Production Line


The Powder Grinding Production Line is mainly used in building materials, chemical, metallurgy, mining, refractories, ceramics, steel, thermal power, coal and other industries grinding Mohs hardness below level 9, humidity below 6% in a variety of non-flammable and explosive materials, such as cement (raw mineral clinker), quartz, feldspar, calcite, gypsum, limestone, dolomite, graphite and thousand kinds of materials.The main equipment of powder grinding production line: jaw crusher, electric magnetic vibrating feeder, grinding mill, analysis machine, pipe device, blower, etc. One of the most important equipment is grinding mill, according to the different needs of customers, the host of milling production line can be configured with overpressure trapezium mill, European-style trapezoid grinding machine, high-pressure suspension mill, Raymond mill, three-ring medium speed micro powder mill, etc.

Feeding material: Big stone &rock
Finished material: Fine powder
Product capacity: 1-35 t/h
Finished size: 30-1250 mesh

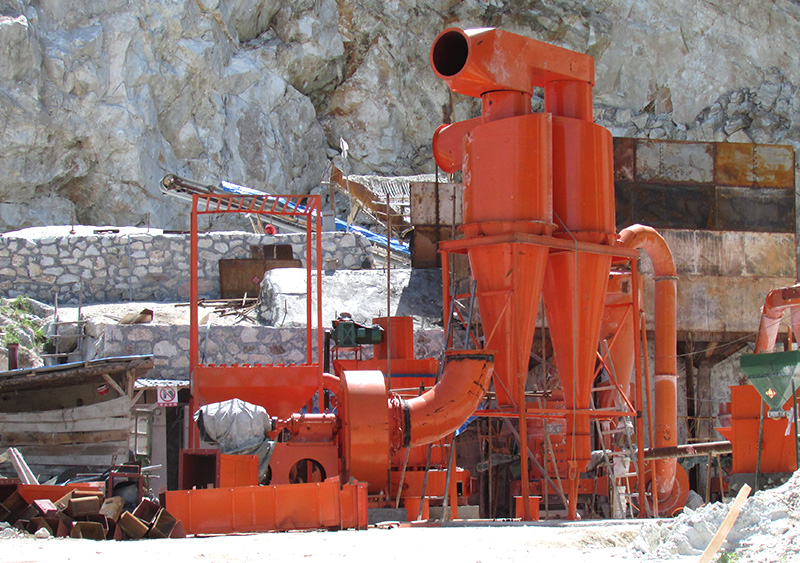

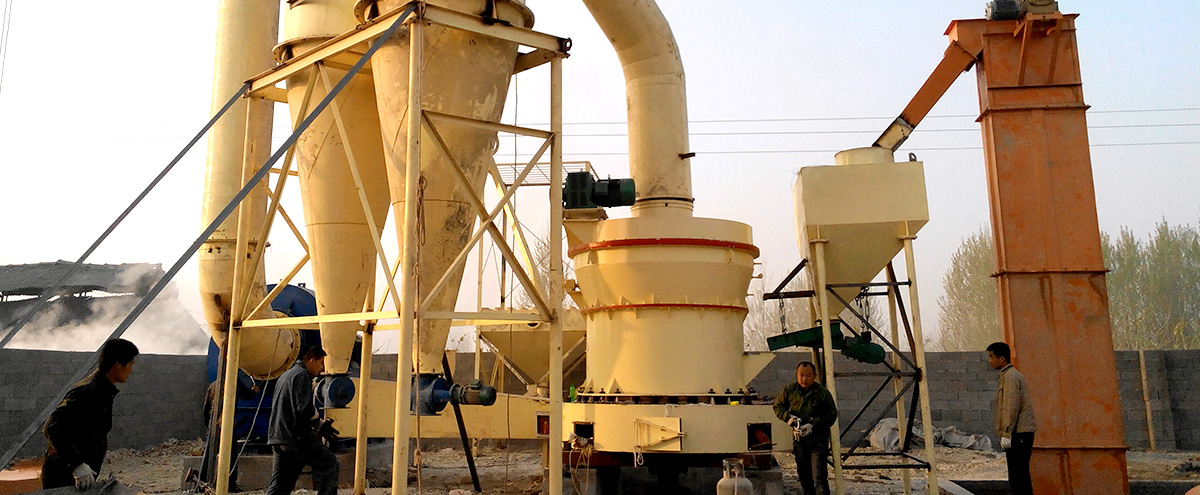

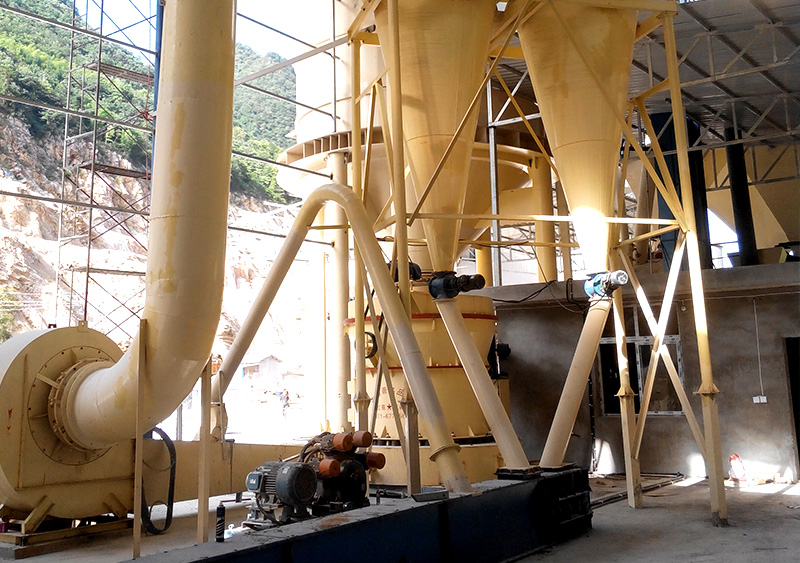

The large block stones crushed by the jaw crusher to the desired size, by the elevator will be sent to the storage bin, the vibrating feeder will send them evenly into the main chamber mill for grinding continuously and quantitatively .The grinding powder by the blower flew away, through the analysis machine grading, fine particles into the large cyclone collector with air flow, separation and collection, then through the powder discharge tube and those are finished product powder.


Strong sealing, good dust removal effect, no pollution; The entire air flow system is closed and circulatory under positive and negative pressure, and the excess gas is sent into the bag filter to be purified and discharged.

Flexible applicability and extensive application; According to customer's requirements, we can configure the grinding equipment and adjust the granularity of finished products to meet the requirements of all sectors of powder materials.

Multi-use of one production line and low investment; Small footprint, no need to replace any parts, a device is applied to different materials and different particle size requirements.The fineness of the finished product is uniform and the conversion rate is high, which can reach 99%.

Customer case

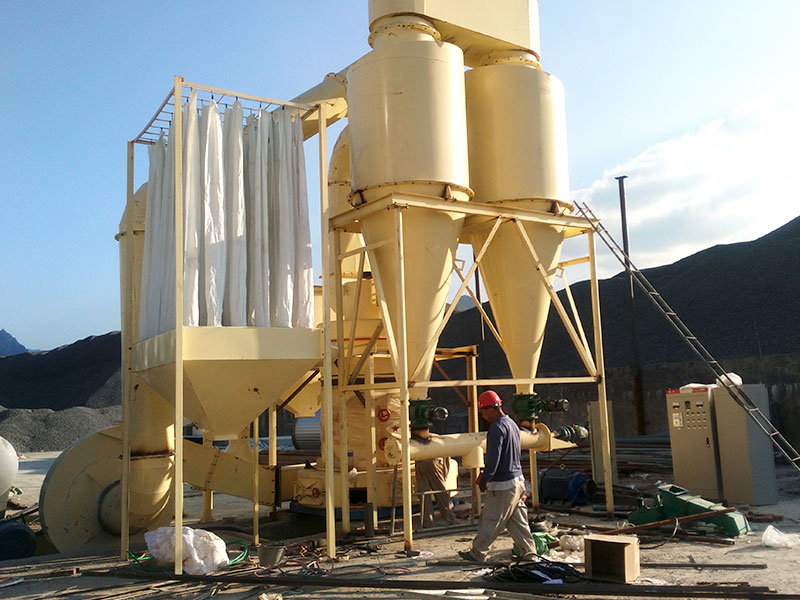

Kenya limestone grinding production line

Mr. Luo, the head of Kenya a superfine powder Co., Ltd., has been engaged in ultrafine grinding industry for more than ten years, and the finished product is supplied to more than 160 manufacturers, buying ultra-fine flour mill from our company.
The main equipment are: small jaw crusher, bucket elevator, super fine grinding machine, hopper, powder collector, collector device, etc. Current the daily operation is 11 hours, the finished product granularity is ranging from 600 to 1250 meshes.

Customer feedback :

The ultra fine powder mill can meet our strict requirements on the quality of products, and its energy consumption is relatively low. The after-sales service is also timely and efficient, and the technician will enquire the equipment usage case from time to time.
