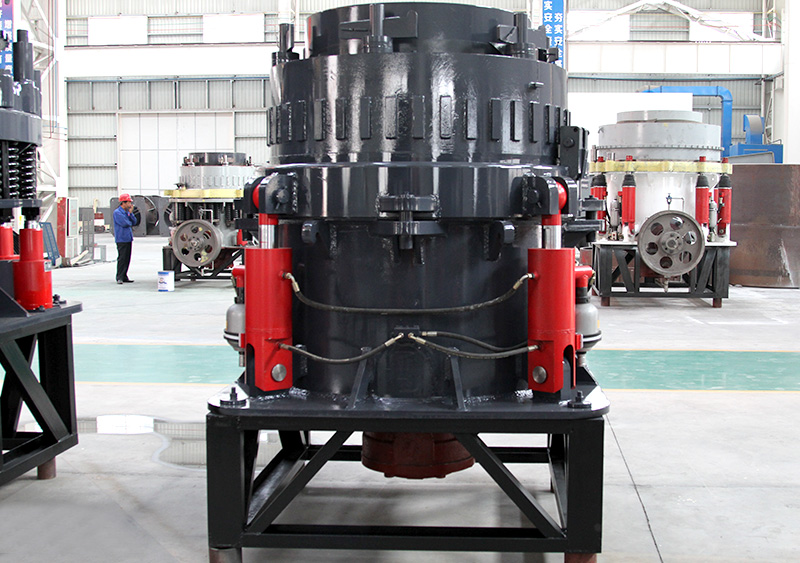

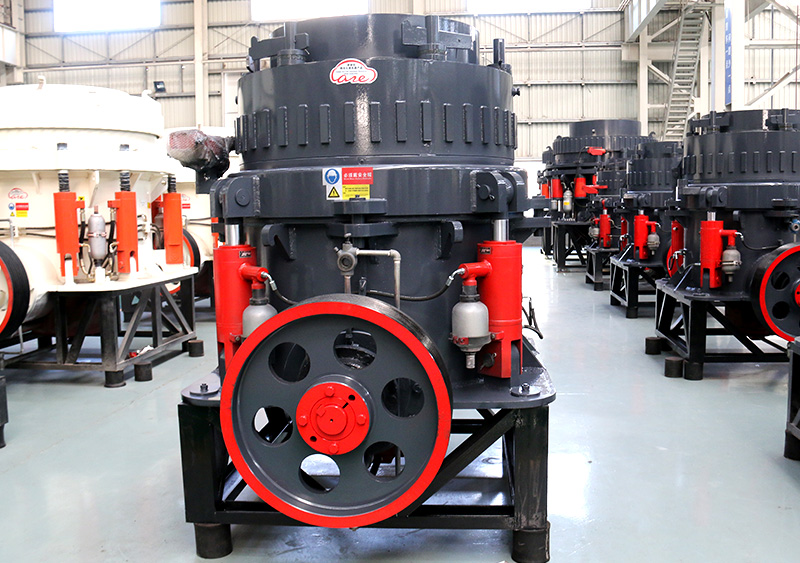

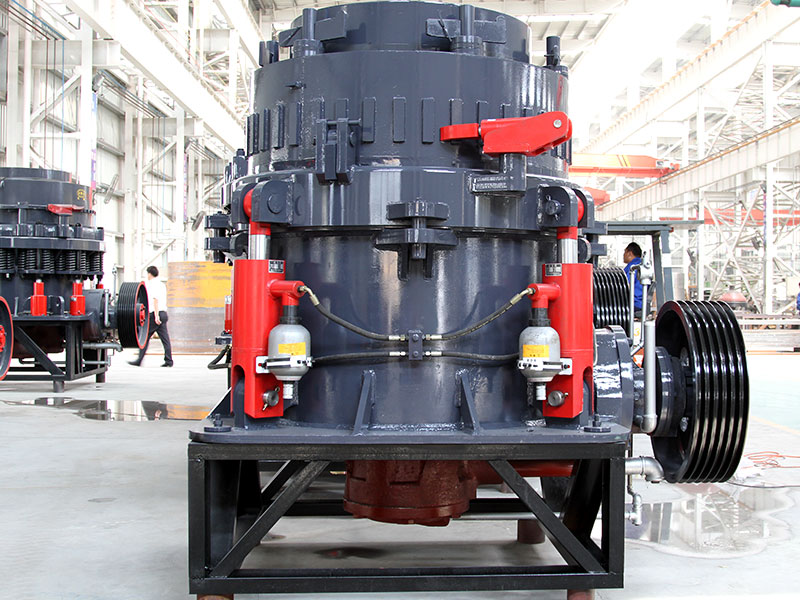

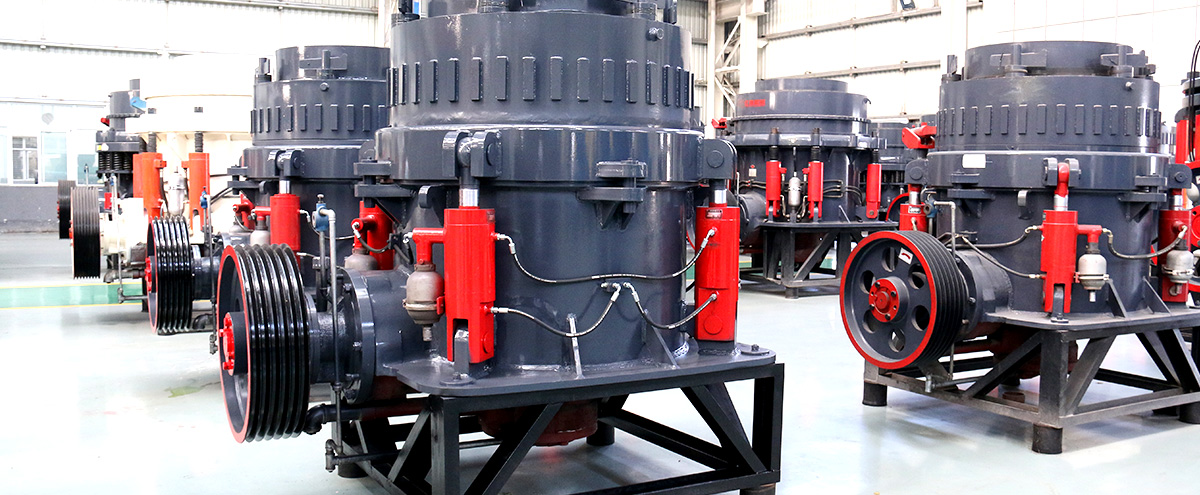

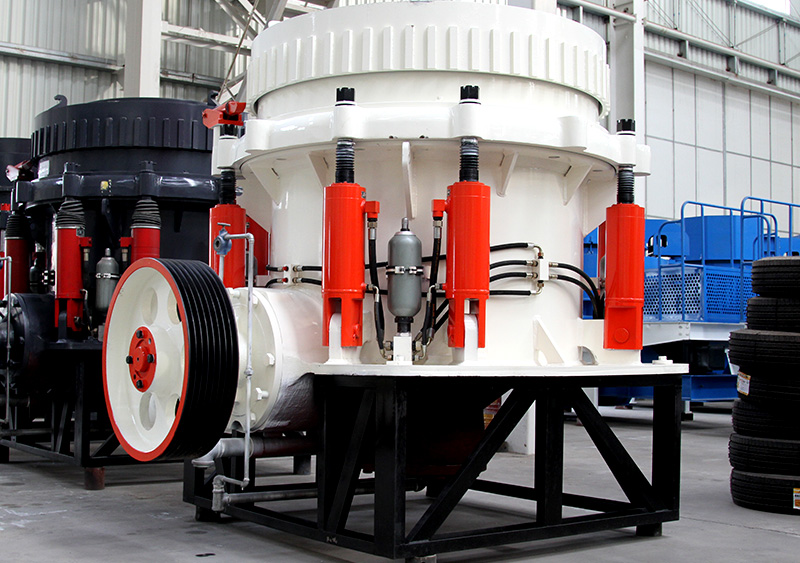

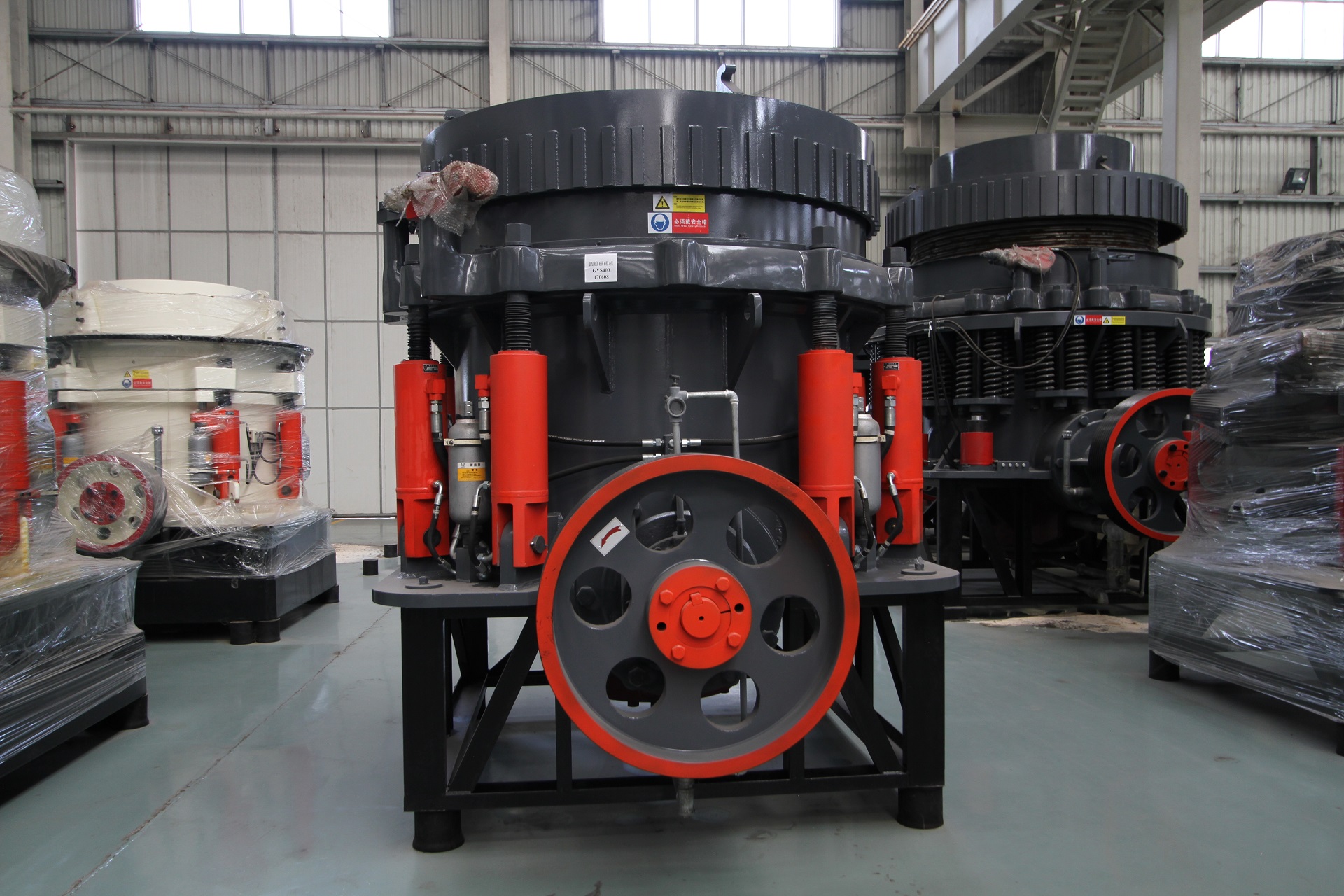

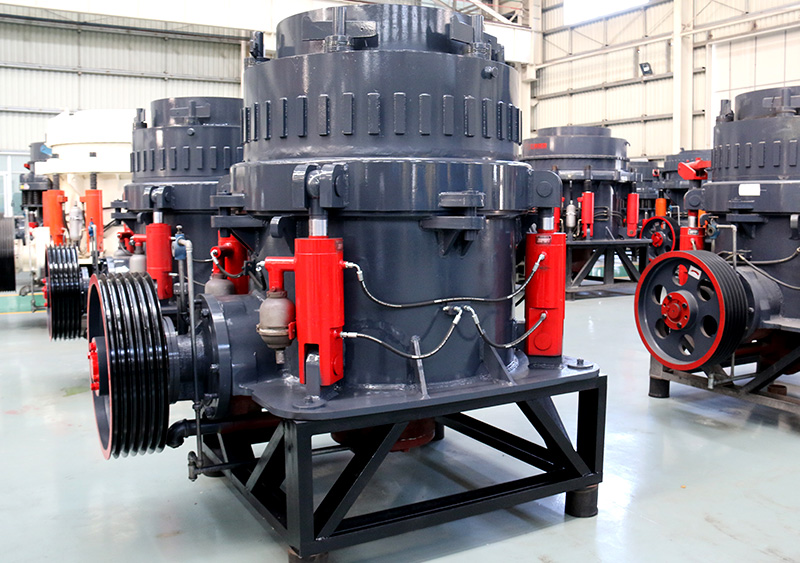

GYS Series Hydraulic Cone Crusher

GYS Series Hydraulic Cone Crusher is a new kind of cone crusher, which combines the single-cylinder hydraulic cone crusher with the ordinary cone crusher and adopts advanced design concept and optimized design. Better crushing frequency and eccentricity are used, so the content of the fine grains is higher in crushing products. It can significantly improve the processing ability of the follow-up process, reduce the overall energy consumption.

The crushing chamber of GYS hydraulic cone crusher is divided into four cavities according to the crushing size requirement. They are medium crushing, medium and fine crushing, fine crushing and super fine crushing.

It is suitable for crushing materials with Platts hardness f = 5-16, such as iron ore, nonferrous metal ore, granite, limestone, quartzite, sandstone, pebbles, etc, these ores and rocks are widely used in metal mining, metallurgical industry, chemical industry, construction industry, cement and sand industry, etc. It is the ideal equipment for large stone plants and mining crushing.

Structure

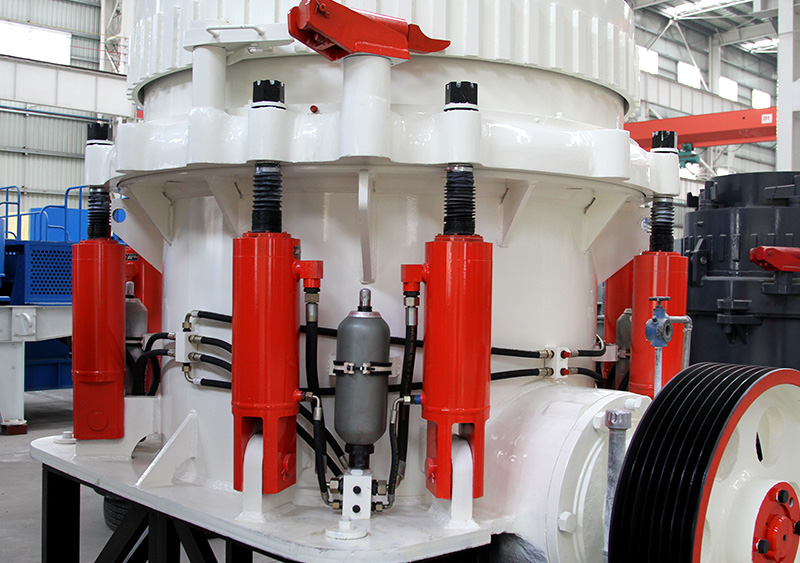

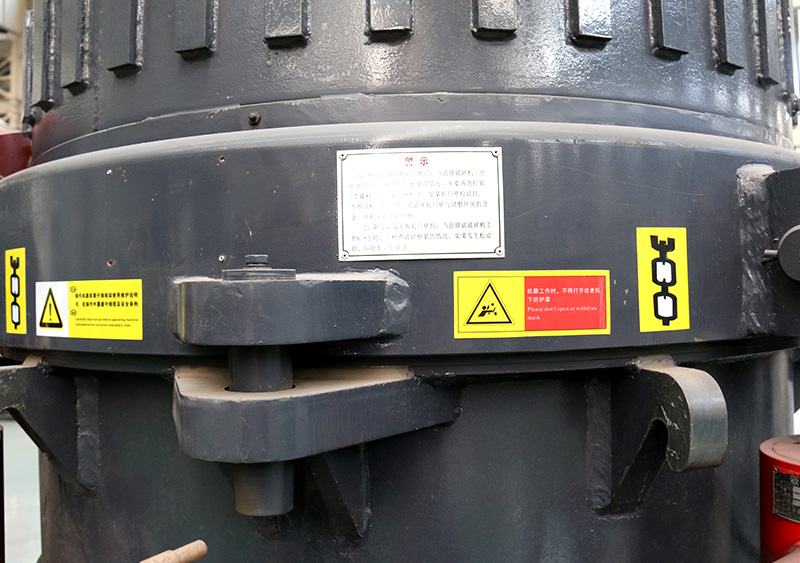

GYS series hydraulic cone crusher consists of the transmission shaft, eccentric sleeve, ball bearing, hydraulic insurance device, adjusting ring, pulley, frame and other components.

Advantages

large handling capacity, good grain size; The type of crushing chamber with high performance and high crushing frequency, greatly improving the processing capacity of the machine, because of the use of laminated crushing principle, most of crushing products are cubic structure and greatly reduce the needle flake.

Low failure in operation; Due to the optimized design and hydraulic protection, the fewer breakdowns happen, and the fault-free operation ratio will exceed 85% in normal use.

Easy to operate and maintain; It is convenient to adjust the discharge port, save time and energy, especially the lining board is easy to change quickly, reducing the downtime.

The full hydraulic operation, strong automation; It can increase the reliability of the machine operation and greatly improve the service life.

The crushing cavity type can be assembled in a variety of combinations, which is better fit the special requirements of users.
